ساعت اندیکاتور دیجیتال دارای کورس 12.7mm و دقت 0.01mm

Digital Dial Indicator with SPC Data Output

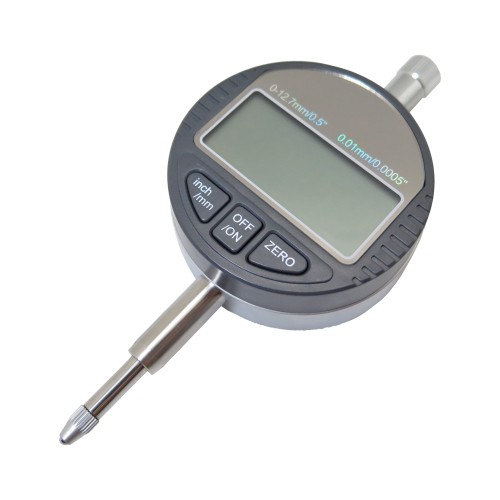

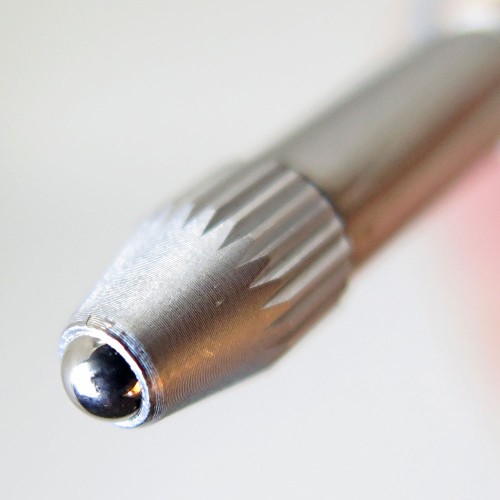

The digital dial indicator with a 12.7 mm measuring range and 0.01 mm resolution is designed for measuring linear displacement, checking surface variation, inspecting runout, and performing dimensional quality control in industrial applications. Its movable measuring spindle and contact probe detect displacement electronically, while the LCD displays the measured value for convenient reading. Low power consumption makes this type of digital measuring instrument suitable for workshops, machining operations, and inspection tasks.

Updated Version with SPC Data Output

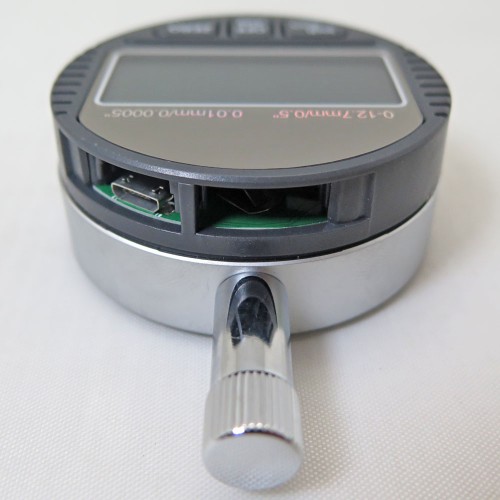

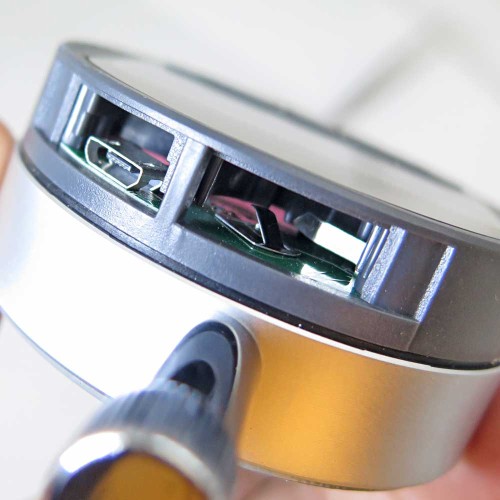

The updated version features an SPC data output port for transferring measurement readings to a computer through a compatible data cable. The readings can be recorded in spreadsheets such as Microsoft Excel or used with compatible statistical process control (SPC) and quality inspection software. Digital data transfer reduces the need for manual transcription, streamlines inspection workflows, and helps minimize data entry errors. Note: The data port may resemble a Micro-USB connector, but cable compatibility should be confirmed before connection. Do not use a standard charging cable or treat this interface as a power input unless explicitly approved by the manufacturer.

Applications

1. Linear displacement measurement
2. Surface variation and runout inspection
3. Dimensional inspection of machined components
4. Digital measurement logging and quality control using the data output version

Technical Specifications

1. Instrument type: Digital dial indicator
2. Measuring range: 0 to 12.7 mm
3. Display resolution: 0.01 mm
4. Display: LCD
5. Battery type: SR44, 1.5V
6. Data output: SPC interface on the port-equipped version
