کیت لیزر حکاکی DK-3.0
کیت لیزر حکاکی DK-3.0 کیت لیزر حکاکی DK-3.0 کیت لیزر حکاکی DK-3.0 کیت لیزر حکاکی DK-3.0 کیت لیزر حکاکی DK-3.0 کیت لیزر حکاکی DK-3.0 کیت لیزر حکاکی DK-3.0

کیت لیزر حکاکی DK-3.0

کد انبار : 5794-495-9330
مدل کالا : DK-3.0-Laser
موجودی: تامین کالا فقط به صورت سفارشی پیش سفارش
قیمت:
8,639,200 تومان

تعداد: - +
   - یا -

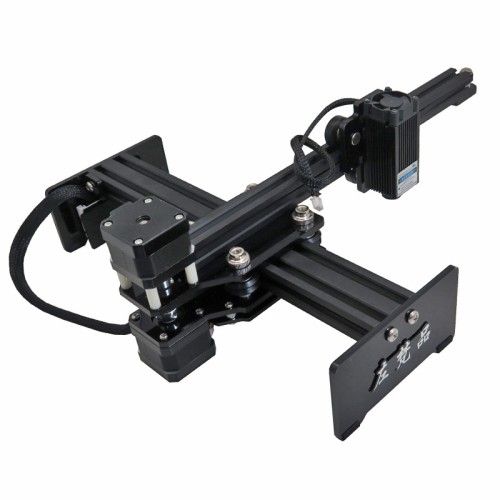

دستگاه حکاکی DK-3.0 با صفحه کار 17 در 20 سانتی متر

دستگاه حکاکی DK-3.0 با ابعاد کار 17 در 20 سانتی متر برای حکاکی قطعات مختلف مانند چوب، بامبو، پلاستیک، چرم و PVC طراحی شده است و در صورتی که جسم ابعاد بلندتری داشته باشد با اضافه کردن چند بلوک به انتهای دستگاه، ارتفاع کار افزایش می یابد.
این لیزر حکاکی به صورت کیت عرضه می شود و در دو قسمت بدنه و بازو تقسیم می شود و ساختار بازویی آن، کار با دستگاه را راحت تر می کند و به راحتی اسمبل می شود.
کیت لیزر DK-3.0 با فایل های فرمت جی کد سازگار است و برای کار با این دسته از فایل ها نیاز به یادگیری نرم افزار نمی باشد و تنها با درگ کردن فایل در نرم افزار، قابلیت اجرا شدن دارد.


کاربرد دستگاه لیزر DK-3.0:

  1. تزیئنات
  2. حکاکی چوب
  3. صنعت

مشخصات دستگاه لیزر DK-3.0:

  1. مدل: DK-3.0
  2. جنس بدنه: آلومینیوم و آکریلیک
  3. توان لیزر: 3500 میلی وات
  4. ولتاژ ورودی: ولتاژ متناوب AC
  5. ولتاژ کار: 12 ولت
  6. دارای پورت میکرو USB
  7. سازگار با سیستم عامل ویندوز، 7، 8، 10
  8. قابلیت پشتیبانی از فرمت های  jpg, bmp, PXIG, GIF, ICO, png, gcode
  9. سطح کار: 170 در 200 میلی متر
  10. وزن خالص: 1.8 کیلوگرم

مستندات:
نحوه اسمبل کردن کیت لیزر DK-3.0
دانلود برنامه سازگار کیت لیزر حکاکی DK-3.0


Description:
DK-3.0 Engraver is designed with a max. 17 * 20cm work area. It will not be limited by the height of a sculpted object. If the object is too high, you need to add blocks to the bottom of the machine so that the distance between the laser head and the object is about 3-5cm.
The single-arm movement structure makes it lighter and more portable while ensuring stability.
You can adjust the laser power through the software according to different materials, which perfectly meet most laser engraving requirements.
You can engrave a variety of materials: wood, bamboo, plastic, leather, PVC.
No need to learn G code, just drag an image into the software to start burning. Start quickly with the areas of interest of the laser.

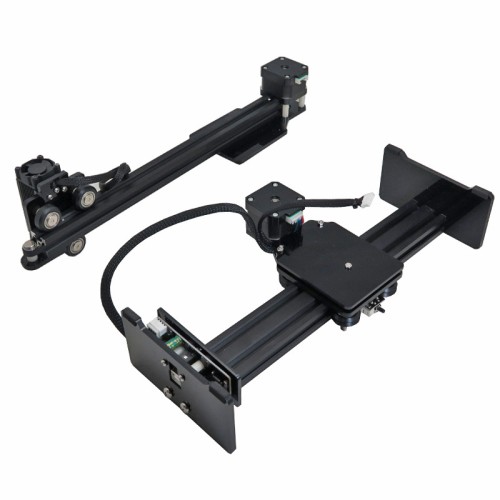

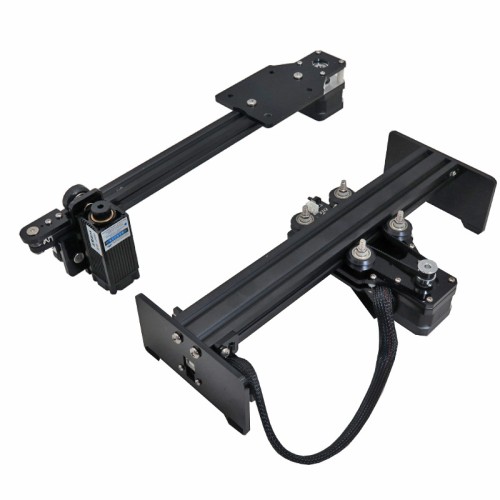

We assembled the machine in 2 parts: the base and the arm, you just need to install two parts together and connect the cables. So it's ready to use!
Application:
Engraving
labs
industries

Features:
Model: DK-3.0
Machine Body Material: Aluminum Alloy, Acrylic
Laser Power: 3500mW
Adapter Input Voltage: AC 110-240V
Working Voltage: DC 12V
Interface: Micro USB
Support System: Win XP, 7, 8, 10
Support Image Format: jpg, bmp, PXIG, GIF, ICO, png, gcode, etc
Engraving  Area (L*W): 170*200mm
Product Dimension (L*W*H): 33*40*12cm
Product  Weight: 1.8kg
