شیلد جوی استیک آردوینو

1. رباتیک
2. کنسول‌های بازی

1. رابط nRF24L01 RF
2. رابط نوکیا 5110 LCD
3. رابط بلوتوث
4. رابط I2C
5. یک جوی استیک PS2
6. ولتاژ کاری : 3.3 یا 5 ولت

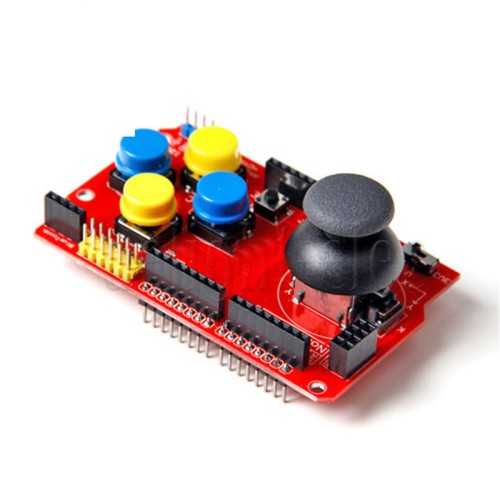

Description:
The Joystick has Nokia 5110 LCD and nRF24L01 interface. You can easy develop your Joystick games, and even communication each other with wireless nRF24L01.
The shield sits on top of your Arduino and turns it into a simple controller. 7 momentary push buttons ( (4 big buttons + 2 small buttons + joystick select button ) and a two-axis thumb joystick gives your Arduino functionality on the level of old Nintendo controllers.

Note:
If you are using the Joystick Shield with the Nokia 5110 Display you can't use a standard Arduino board as those only supply 50mA on the 3.3V pin which is not enough for what the Nokia 5110 backlight needs. Make sure you use a board that can handle more than 50mA on the 3.3V pin if you are using the Nokia 5110 and want backlight!

Application:
robotic
Game consoles

Features:
nRF24L01 RF interface
Nokia 5110 LCD interface
bluetooth interface
I2C interface
one PS2 toystick
working voltage: 3.3V or 5V eg. STM32
