بسته 2 تایی پولی هرزگرد 20 دندانه GT2 مخصوص پرینتر سه بعدی شفت 5 میلیمتری
بسته 2 تایی پولی هرزگرد 20 دندانه GT2 مخصوص پرینتر سه بعدی شفت 5 میلیمتری بسته 2 تایی پولی هرزگرد 20 دندانه GT2 مخصوص پرینتر سه بعدی شفت 5 میلیمتری

بسته 2 تایی پولی هرزگرد 20 دندانه GT2 مخصوص پرینتر سه بعدی شفت 5 میلیمتری

کد انبار : 1642-167-3016
مدل کالا : 20-pulley wheel GT2-5
موجودی: در حال حاضر موجود نمی باشد. موجودی کالا
قیمت:
69,100 تومان

تعداد: - +
   - یا -

بسته 2 تایی پولی هرزگرد 20 دندانه GT2 مخصوص پرینتر سه بعدی شفت 5 میلیمتری

پولی ها به منظور تغییر مسیر و افزایش نیروی اعمال شده به یک بار مورد استفاده قرار می گیرند که در نتیجه موجب صرفه جویی در مصرف انرژی می شوند. پولی ها به صورت ثابت، متحرک و یا ترکیبی از هر دو می باشند. پولی های تایمینگ در سیستم های انتقال قدرت استفاده می شوند و نسبت سرعت در طراحی آن ها خیلی مهم می باشد. این پولی ها بسیار با دوام و پر کاربرد هستند.
برای انتقال حرکت چرخشی استپر موتور نیاز به بخش های مختلف از پولی و تسمه تایمینگ استفاده می شود. دندانه های روی سطح پولی تایمینگ با فاصله یکسان از هم قرار گرفته اند که این فاصله بین دو دندانه را گام می گویند.
جنس پولی ها از آلومینیوم آلیاژی و این پولی برای انتقال قدرت از یک محور به محور دیگر مناسب است.
استفاده از پولی هرزگرد باعث کاهش لغزش و حرکت گسسته ی استپر موتور می شود. بهترین انتخاب برای پرینتر های سه بعدی برای افزایش دقت استفاده از تسمه تایمینگ و پولی است.
هر چه تعداد دندانه های پولی ها بیشتر باشد دقت چاپ بالاتر خواهد بود.

Description:
A pulley is a wheel on an axle or shaft that is designed to support movement and change of direction of a taut cable or belt or transfer of power between the shaft and cable or belt. In the case of a pulley supported by a frame or shell that does not transfer power to a shaft, but is used to guide the cable or exert a force, the supporting shell is called a block, and the pulley may be called a sheave.
A pulley may have a groove or grooves between flanges around its circumference to locate the cable or belt. The drive element of a pulley system can be a rope, cable, belt, or chain.
3D Printer GT2 20 Teeth Aluminum Synchronous Pulley [5mm Bore] package contains 2 pieces of an aluminum pulley with 20 teeth and 3mm bore, which is designed to keep GT2 synchronous belt or 2GT timing belt of the ender-3 3D printer accessory. This pulley is made of aluminum premium material to achieve durability and loge life. This pulley is so designed to easily install and attaches to the stepper motor shaft and is matched with a synchronous wheel H-type of 2GT timing belt
with 6mm width, to transfer stepper motor force and movement. So it is specialized for building a 3D printer, engraving machine, CNC, or similar projects. This pulley is presented in 2 optional types of toothless and with 20 teeth, without any price difference.

Features:
Material: Aluminum
Teeth: 20T
Bore: 5mm

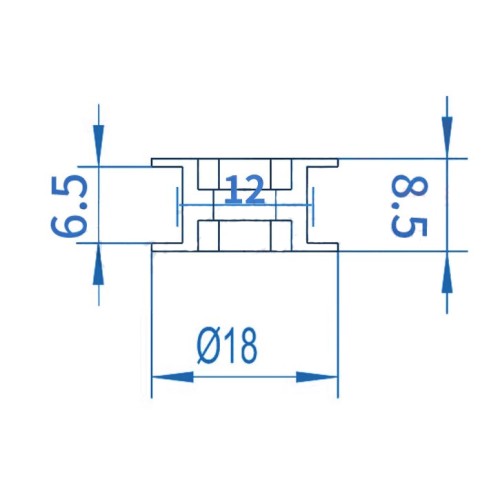

Total Size: 16*16*27mm(L*W*H)
