بسته 2 تایی بلبرینگ خطی LM8LUU
بسته 2 تایی بلبرینگ خطی LM8LUU بسته 2 تایی بلبرینگ خطی LM8LUU بسته 2 تایی بلبرینگ خطی LM8LUU بسته 2 تایی بلبرینگ خطی LM8LUU

بسته 2 تایی بلبرینگ خطی LM8LUU

کد انبار : 3809-167-6041
مدل کالا : LM8LUU
جستارش : A2-02-0703A
موجودی: 130
قیمت:
90,260 تومان

تعداد: - +
   - یا -

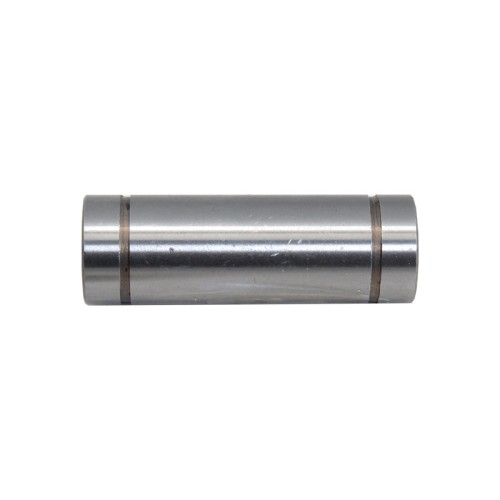

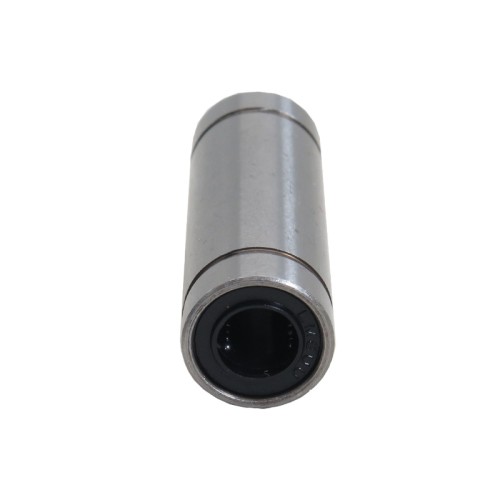

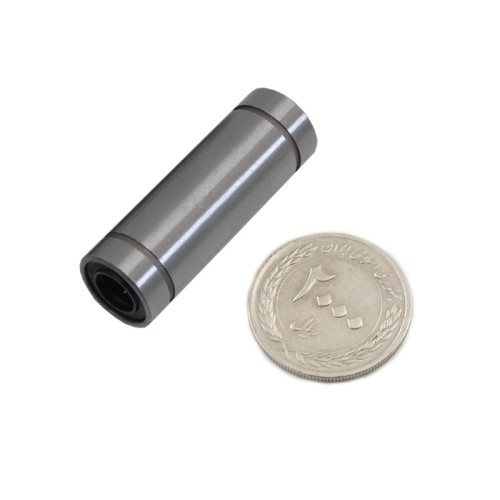

بسته 2 تایی بلبرینگ خطی LM8LUU

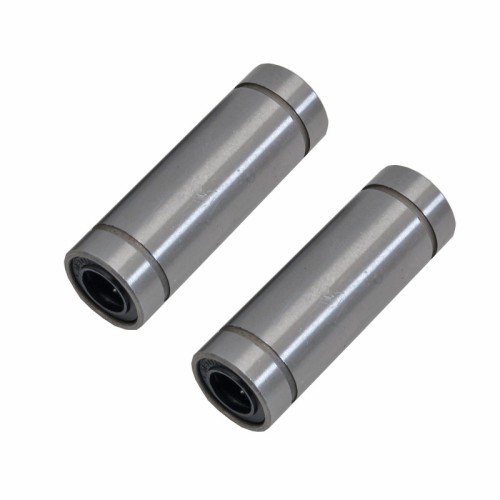

بسته 2 تایی بلبرینگ خطی LM8LUU شامل 2 قطعه بلبرینگ خطی مناسب برای چاپگر سه بعدی و بوش کشویی CNC است. این بلبرینگ خطی از دو سیلندر بیرونی و درونی تشکیل شده که شکاف بین آنها شبیه قفس بوده و با ساچمه های فولادی پر شده اند. بنابراین این مجموعه حرکت دقیق و روان را در طول (در جهت) محور تکی فراهم می کند. بلبرینگ خطی LM8LUU دارای محفظه ساچمه پایینی است که از فولاد سخت شده ساخته شده تا حرکتی پایدار و نرم با اصطکاک کم ایجاد کند.

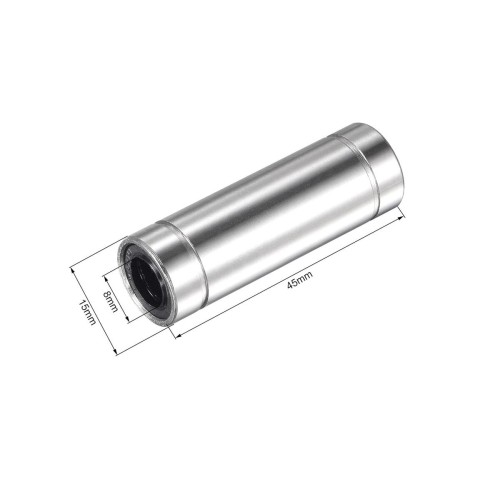

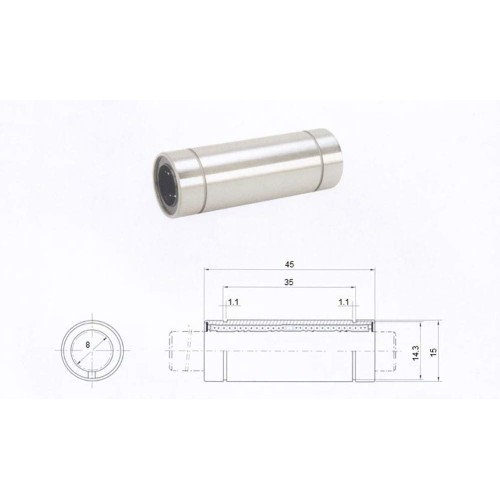

مشخصات:
مدل: LM8LUU
قطر داخلی: 8 میلیمتر
قطر خارجی: 15 ملیمتر
طول: 45 میلیمتر
مناسب برای شفت 8 میلیمتری

Description:
3D Printer Linear Bushing Ball Bearing package includes 2 pieces of linear ball bearing, suitable for 3D printer and slide bushing CNC part. This bearing extension line consists of two outer and inner cylinders in which the gap between them is similar to a cage and filled with steel balls. So this set provides smooth precision movement across (in the direction of) the single axis. This bearing extension features a lower ball cage, made of hardened steel to make a stable and smooth movement with low friction.
This bearing extension is presented in 4 models of LM6LUU (suitable for 6mm linear shaft), LM8RUU (suitable for 8mm linear shaft), LM10LUU (suitable for 10mm linear shaft), and LM12RUU (suitable for 12mm linear shaft), that each model has a different length and diameters (inner and outer diameter).

Features:
Model: LM8LUU
Inner diameter: 8 mm
Outer diameter: 15 mm
Total length: 45 mm
The bearing work for 8mm linear shaft
