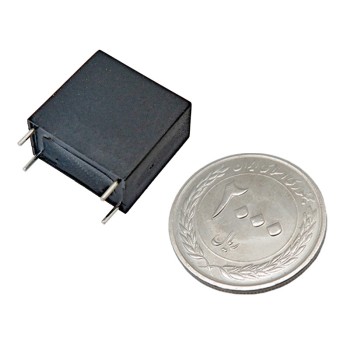

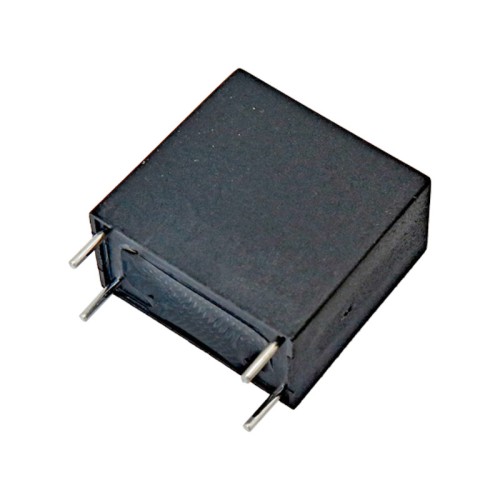

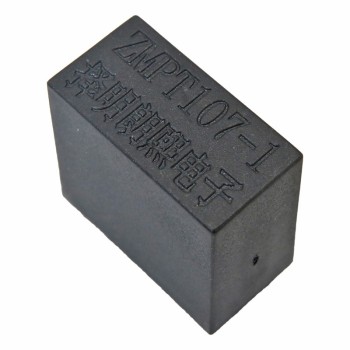

ترانسفورمر ولتاژ ZMPT107 دارای نسبت تبدیل 2mA / 2mA

Description:
ZMPT107 is a voltage transforme ideal to measure the AC voltage. This AC Voltage Sensor is the low cost solution to solve all the above problem. If you want to measure ac volatage and have size limitations, This is best low cost and  high precision Voltage Transducer for PCB Mounting. This module makes it easy to measure AC voltage upto 1000 volts without any noise.
To improve reliability, the current-limiting resistor selected usually is greater than its 4times the rated power, and generally use a high temperature coefficient metal film resistor.
ZMPT101B/ZMPT107 usually working at rated current:1~2mA. When Rated input is voltage≤100V，Usually choosing the operating current I=2mA and When Rated input voltage is ≥220V，To reducing the resistor power Usually choosing the operating current 1 mA≤I≤2 mA.

Application:
Metering (electrical energy meters)
AC Voltage measurment
Sensing Overload Current
Ground fault detection
Household electrical equipment
Industrial apparatuses
Electrical testing equipment and relay protection

Features:
Model : ZMPT107
primary current : 2mA
secondary current : 2mA
turns ratio : 1000:1000
phase angle error : ≤45（input 2mA，sampling resistor 50Ω）
linear range : 0~1000V       0~10mA（sampling resistor 50Ω）
linearity : ≤ 0.2%（20%dot~120%dot）
Permissible error : -0.6% ≤ f ≤0%（input 2mA，sampling resistor 50Ω）
isolation voltage : 4000V
application : voltage and power measurement
Encapsulation : Epoxy
installation : PCB mounting
operating temperature: -40℃~+70℃
