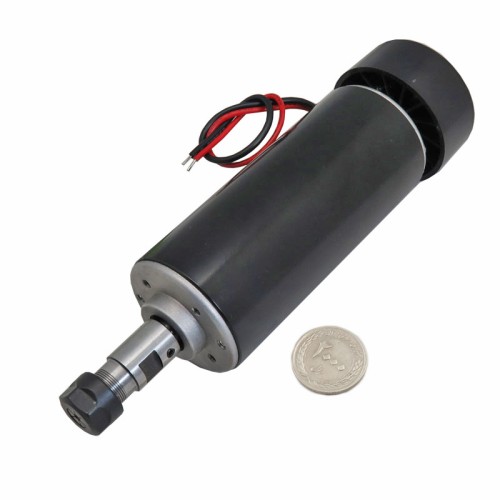

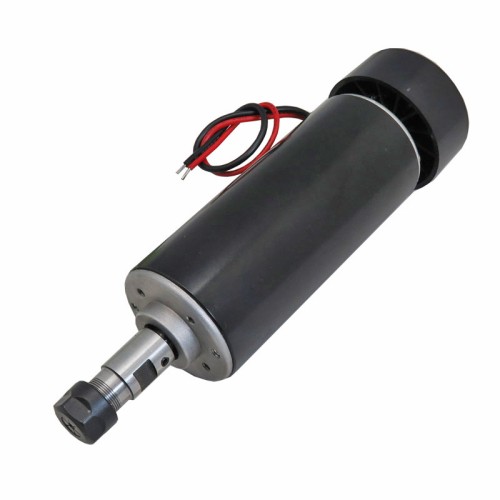

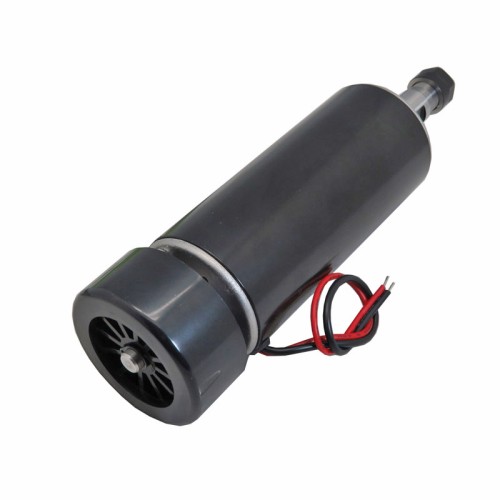

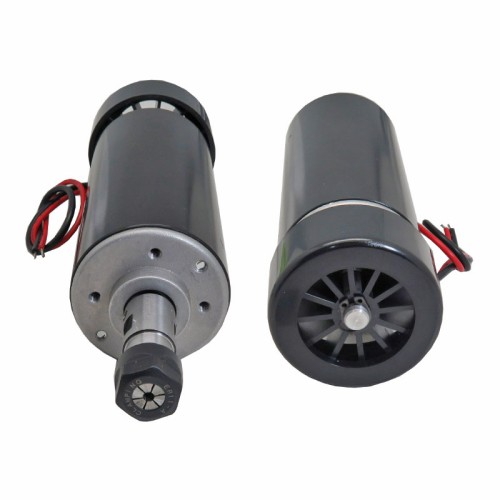

اسپیندل 100V DC دور بالا 500 وات

اسپیندل 100V DC دور بالا 500 وات مناسب برای دستگاه های Mini CNC

کاربرد اسپیندل 100V DC:

1. دستگاه حکاکی
2. ماشین تراش و CNC

مشخصات اسپیندل 100V DC:

1. ولتاژ کارکرد: 100 ولت DC
2. توان: 500 وات
3. سرعت: حداکثر 12 هزار دور در دقیقه
4. گشتاور: 500 گرم بر سانتی متر مکعب
5. مقاومت عایق: >2 مگا اهم
6. مقاومت عایق دی الکتریک: 400 ولت
7. قطر: 52 میلی متر
8. طول موتور: 200 میلی متر
9. طول قسمت Chuck موتور: 45 میلی متر
10. قطر قسمت Chuck موتور: 16 میلی متر

مستندات:
ER11-500W

Description:
In machine tools, a spindle is a rotating axis of the machine, which often has a shaft at its heart. The shaft itself is called a spindle, but also, in shop-floor practice, the word often is used metonymically to refer to the entire rotary unit, including not only the shaft itself but its bearings and anything attached to it.
A spindle motor is a small, high-precision, high-reliability electric motor that is used to rotate the shaft, or spindle, on which the platters are mounted in a hard disk drive.
The CNC spindle is the heart of any mill. It consists of a rotating assembly with a taper where tool holders may be installed. A CNC spindle motor with the optional transmission of some kind rotates the CNC spindle. The transmission matches the highest power rpm range of the CNC spindle motor to the spindle RPMs that are ideal for the particular speeds and feeds of the material being cut. CNC spindle motor contains different types of spindles.
In terms of voltage, it categorized in DC and AC spindle motors. AC Spindle Motors can be divided into water-cooling, air-cooling, natural cooling, and ATC spindle motors.

Application:
engraving metal or non-metallic materials
cnc machine
