کنترلر موتور براشلس 24 ولتی 350W ZS-X11B

Newly launched BLDC wide voltage 7-24V high power small volume potentiometer model with speed regulation brushless without Hall controller, single button model supports single button free switching acceleration and deceleration with power-off memory function potentiometer speed regulation model supports PLC 0-5V Analog signal speed regulation

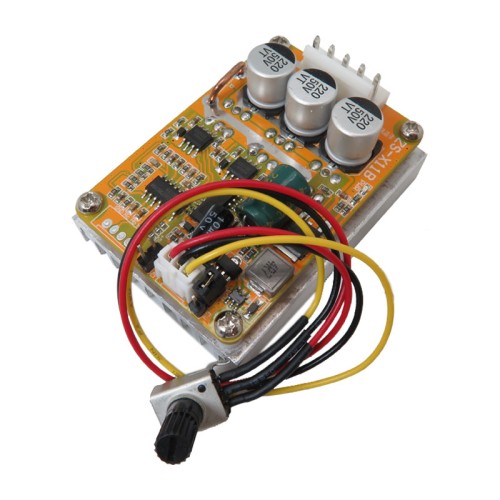

Instructions for using the potentiometer:

The standard potentiometer directly adjusts the speed without the need for external control signals to increase clockwise and decrease counter clockwise. It is also suitable for external PLC 0-5 analog control. Unplug the potentiometer cable. The external 0-5 analog control signal and ground wire are connected to the input signal terminal of the brushless driver board respectively. As long as two wires are OK.

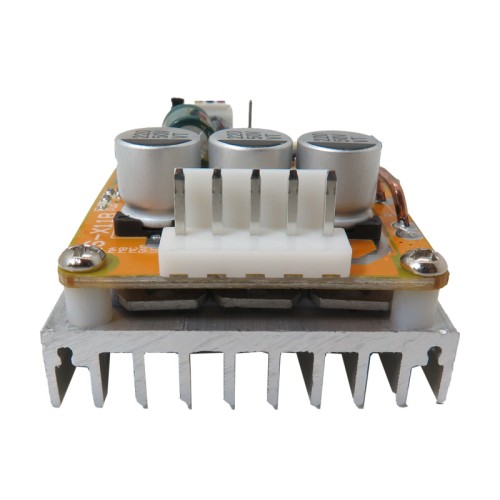

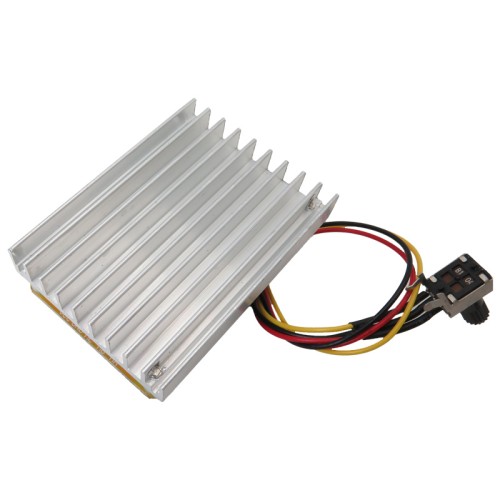

The ESC is specially developed and designed for all kinds of industrial control power tools such as air pumps, water pumps, oil pumps, and fans that use DC three- phase brushless motors . , when the external heat dissipation condition of the ESC is poor and the temperature exceeds100 degrees, the power will be automatically reduced, and the temperature will return to normal when the temperature drops to 100 degrees.

industrial

duct fan

air pumps

water pumps

oil pumps

fans

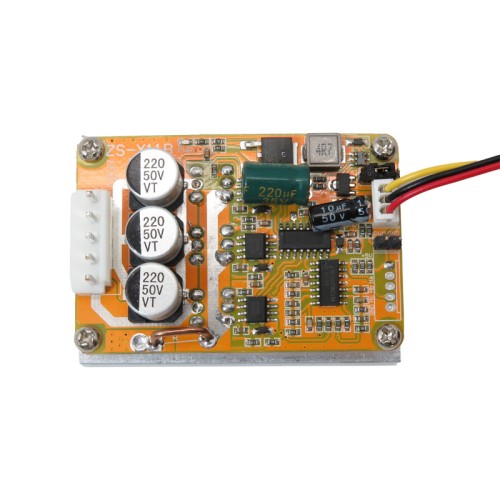

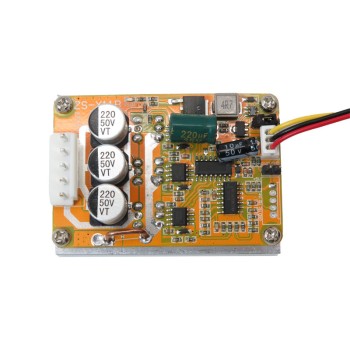

Product name: Potentiometer three- phase DC brushless without Hall drive

Model: X30A ( potentiometer)

Working voltage: 7-24V

Driving current: rated 15A plus fan cooling 20A

Maximum speed: 224000 RPM (2 pole motor), 74000 RPM (6 pole motor), 40000 RPM (12 pole motor), 35000RPM (14 pole motor).

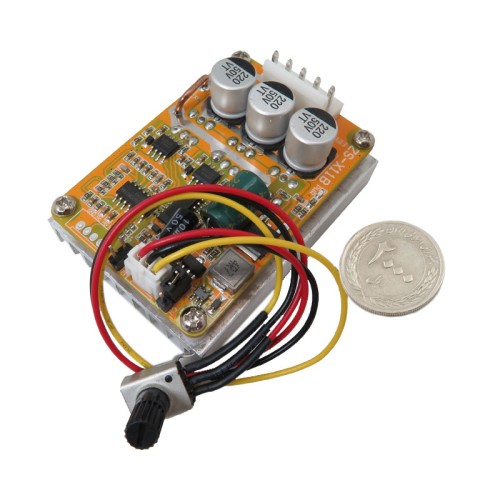

Product size: length 45MM* width 26MM* height 12MM (excluding wires and protruding capacitors)

Weight: 29g
